Notice: The first line in the .sp file must be a comment line or be left blank.
Notice: HSpice is case insensitive.
SPICE file: "nmos_amp_01.sp"
| * nmos_amp_01.sp * The MOSFET Amplifier * page 344, Figures 7.19, 7.20, 7.21, 7.22 * A. Agarwal and J. Lang, "Foundations of Analog and Digital Electronic * Circuits," Elsevier, 2005 .OPTION POST R1 Vs OUT 10k M1 OUT G 0 0 NCH L=1u W=10u .MODEL NCH NMOS (LEVEL=1 VTO=0.5) VDD Vs 0 5V VIN G 0 .DC VIN 0 5 0.1 .PROBE V(OUT) .END |

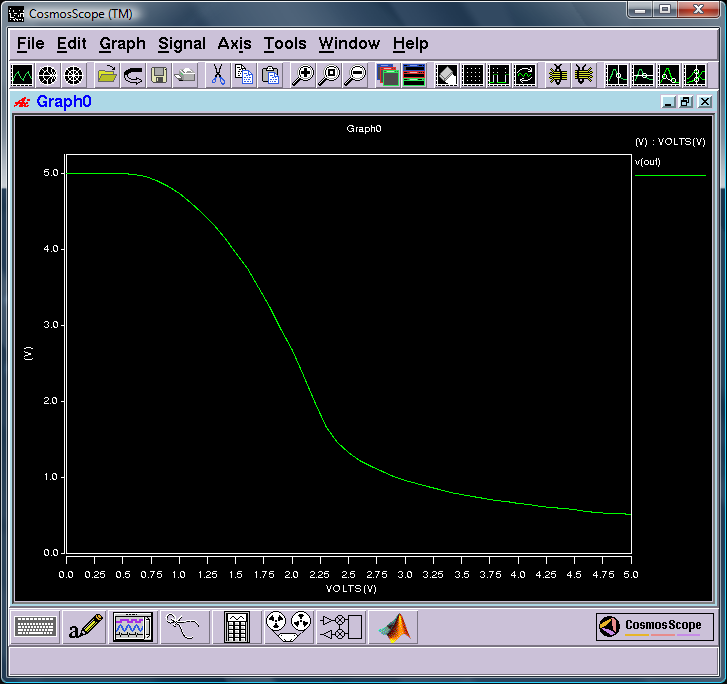

Use CosmosScope to open the ".sw0" file and
then display the waveform of "v(out)".
Result:
SPICE file: "nmos_amp_01_tsmc.sp" (TSMC library is used)
| * nmos_amp_01_tsmc.sp * The MOSFET Amplifier * page 344, Figures 7.19, 7.20, 7.21, 7.22 * A. Agarwal and J. Lang, "Foundations of Analog and Digital Electronic Circuits," Elsevier, 2005 .lib 'hspice.lib' tt .OPTION POST R1 Vs OUT 10k M1 OUT G 0 0 NCH L=1u W=10u VDD Vs 0 1.8V VIN G 0 .DC VIN 0 1.8 0.05 .PROBE V(OUT) .END |

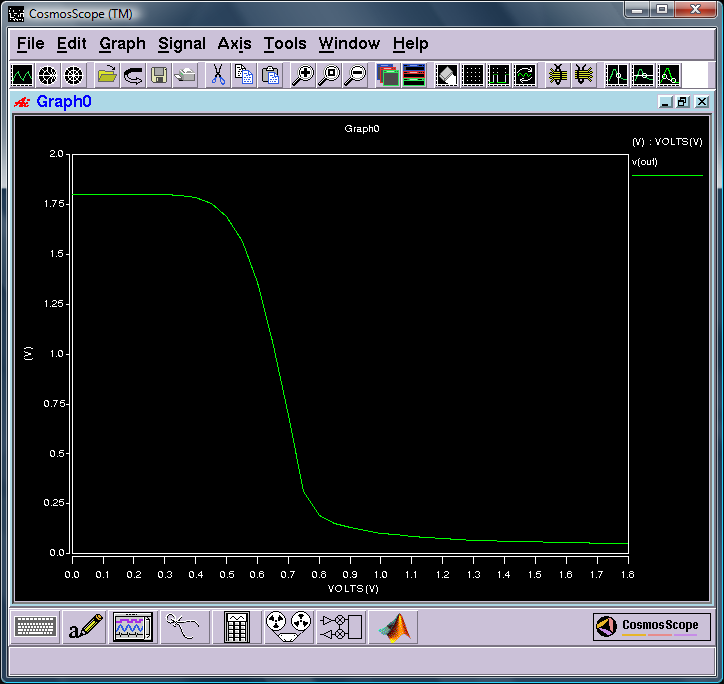

Use CosmosScope to open the ".sw0" file and
then display the waveform of "v(out)".
Result:
last update: October 30, 2009
