Tutorial #4

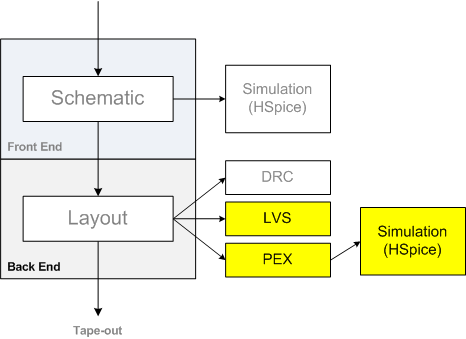

LVS, PEX, and Post-Layout Simulation

---

---

LVS check

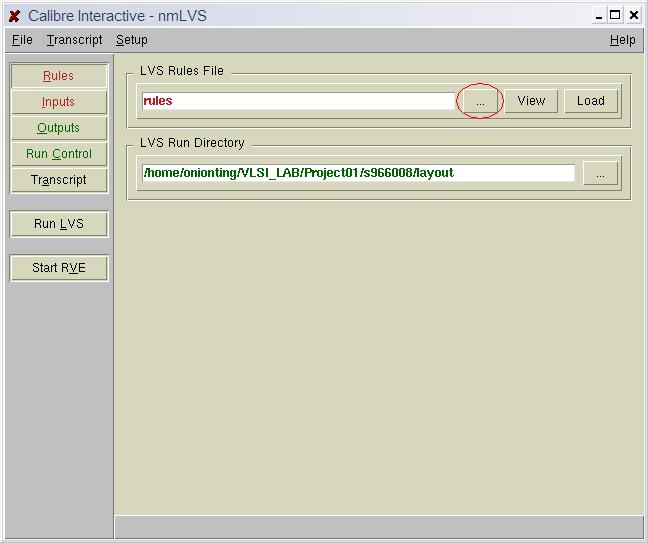

1. Verify -> Calibre -> Run LVS   出現以下畫面

LVS Rules File: /home/iltseng/pub/Library/Calibre/lvs/T18_Calibre_LVS_13A.13a

Inputs -> Netlist : INV.sp    (This is your file)

注意 : 必須修改 INV.sp 檔案，將 Pch 以及 Nch 改成 P 和 N

　

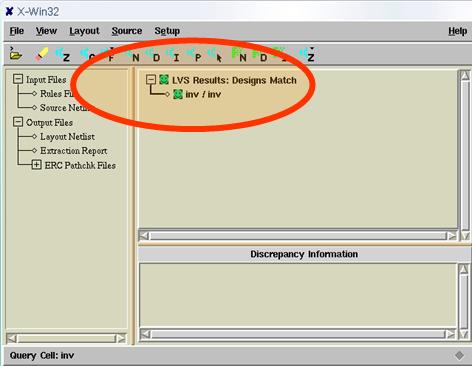

2. Run LVS 成功  (出現笑臉)

　

PEX

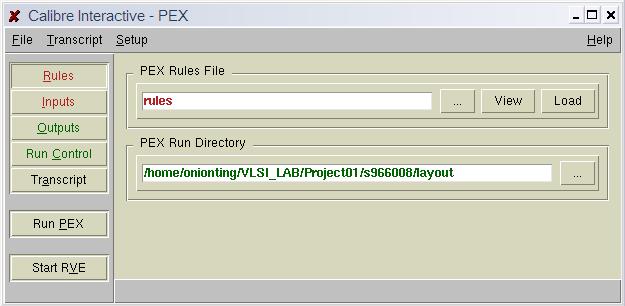

1. Verify -> Calibre -> Run PEX 出現以下畫面

PEX Rules File : /home/iltseng/pub/Library/Calibre_LPE-1_3A/T18_Calibre_LPE_13A.13a

Inputs -> Netlist : INV.sp

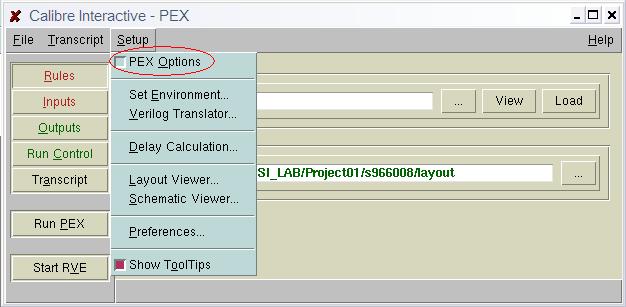

2. Setup -> PEX Options

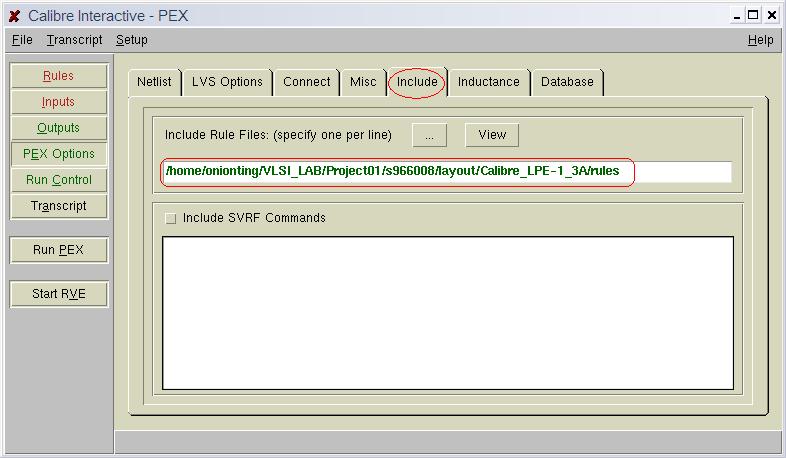

將上圖的 Include Rule File 改成: /home/iltseng/pub/Library/Calibre_LPE-1_3A/rules



3. Run PEX

產生三個檔 : XXX.pex & XXX.pxi & XXX.netlist

依照 Tutorial 02 跑Hsipce & CosmosScope



---
